Model NO.
PDC cutter for oil and gas drilling
Quantity:
PDC consists of two parts: polycrystalline diamond layer and tungsten carbide base. It is a super hard product made by sintering super hard composite material under special high temperature and high pressure. This product has the feature of good wear-resistance, impact resistance and good thermal stability. It is suitable for making petroleum drill bits, coal mine drill bits and cutters.
Our advantages:
1.Adopt good quality diamond micron powder to make the PCD Layer.
2.Stable performance,long service life,good impact and abrasion.
3.Easy to replace inserts on drillers or chain saw machines.
4.Widely used for oil/gas/geological drill bits, rock drill and coal mining drill bits, and also PDC cutter can be used for diamond tools for cutting, grinding, polishing.
5.Use original tungsten carbide material as basement,using content of 99.95% or more high purity raw material,to ensure performance of inserts basement.
6.Strict quality control: all our PDC cutters will be tested before shipping, the products you received are all with high quality.
7.Fast delivery: the normal and popular models are always in stock, shipment will be made very soon after your payment made.
8. OEM & ODM accepted: we can produce PDC cutters as per your drawing.
9.Low MOQ:50pcs

Application

PDC cutter(Polycrystalline Diamond Compact) is widely used for making tools applied in the field of oil&gas drilling, geology exploring, coalfield mining and mechanical processing industry

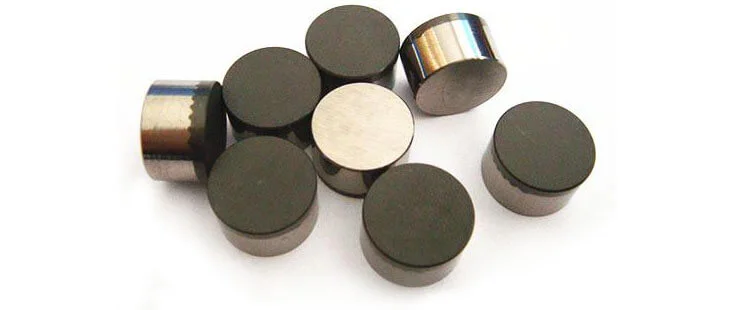

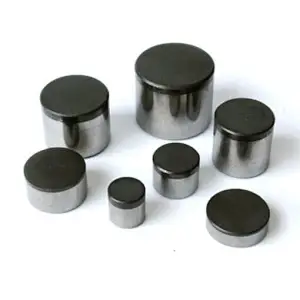

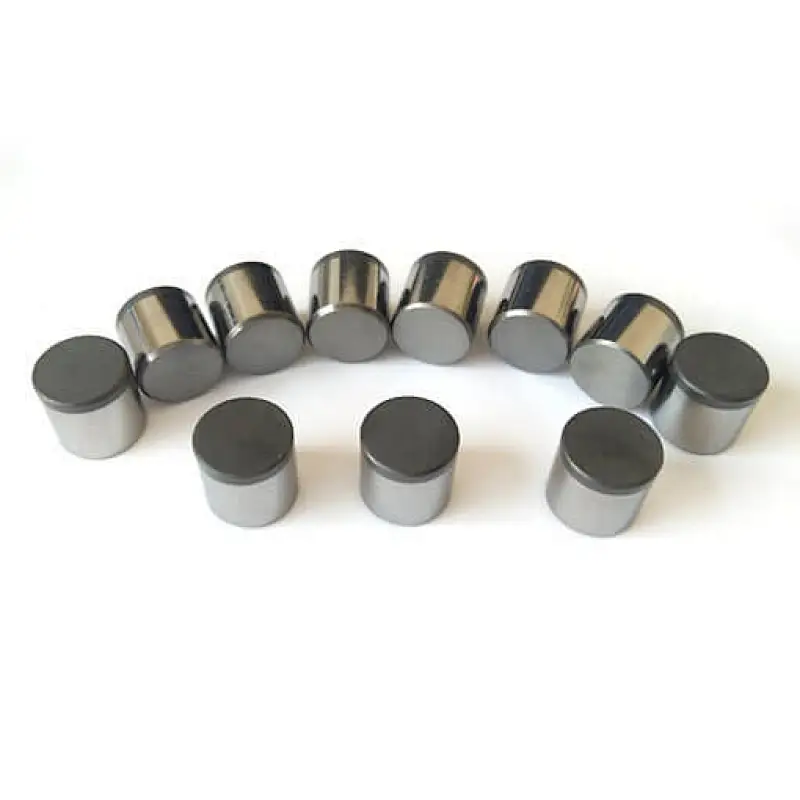

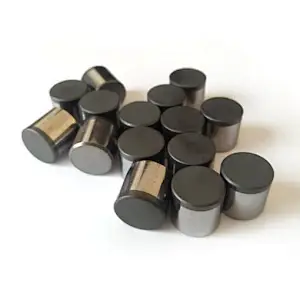

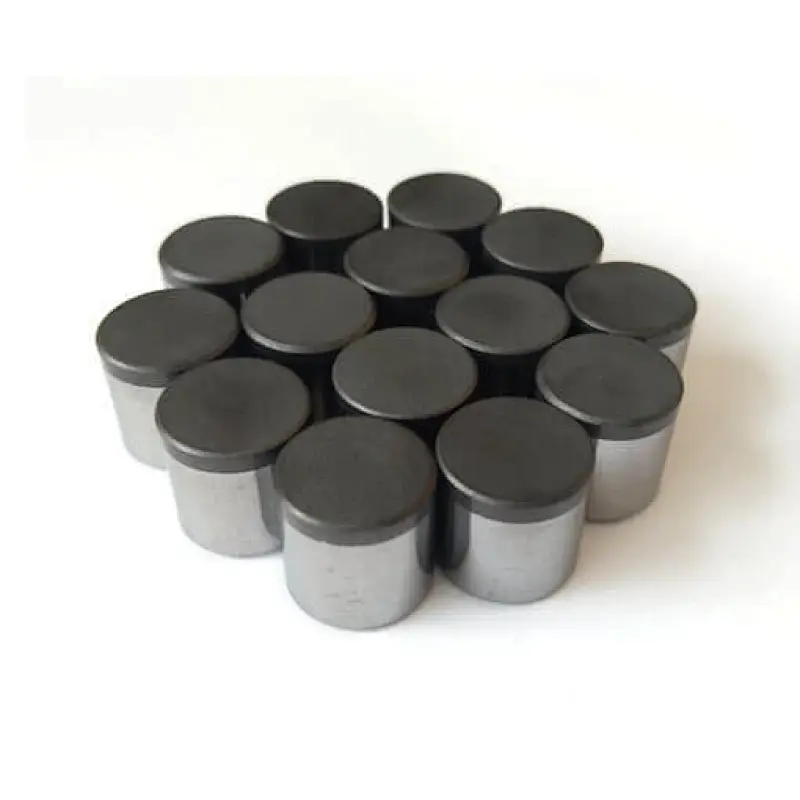

1.Standard:Standard PDC adopts new flat, slotted junction plane,the thickness of diamond layer is from 0.8-2.5mm according to client's requirement. They are widely used in engineering and geological purpose.

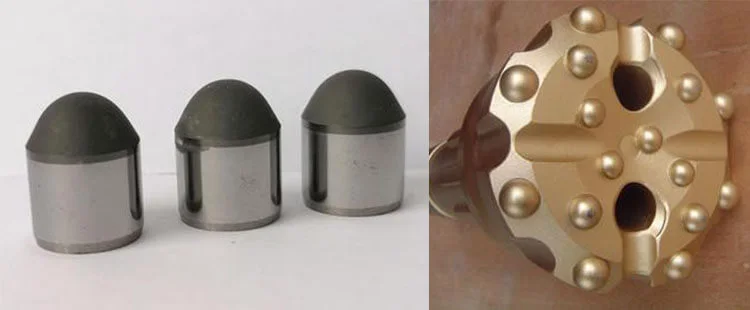

2.Spherical shaped PDC has more excellent shock-resistance toughness(ballistic work is equal to that of hard alloy) and it can be applied to percussion drilling, medium and small drill bit, oil roller bit, down-the-hole drill bit and geothermal drilling etc.

Model

Dia(mm)

Height(mm)

Dome radius(mm)

1214

12.14

14

5.51

1217

12.8

17.1

5.22

1420

14.1

20

4.94

1623

16.14

23

6.37

1624

18.14

26

6.41

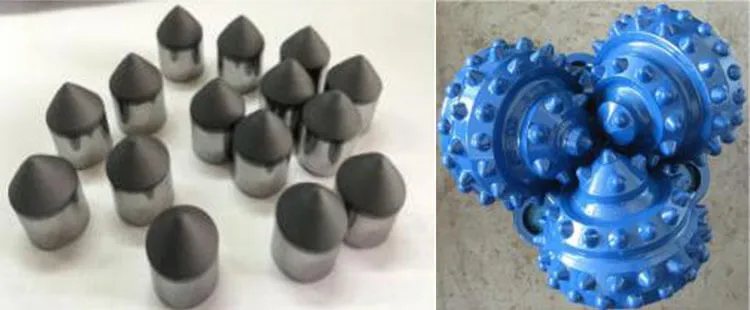

3.Tapered shape insert:

Model

Dia(mm)

Height(mm)

Dome radius(mm)

0812

8.12

12

2.67

1012

10.14

12.5

3.82

1119

11.7

19

3.55

1217

12.2

17

4.75

1320

13.2

19.5

4.29

1422

14.2

22

5.04

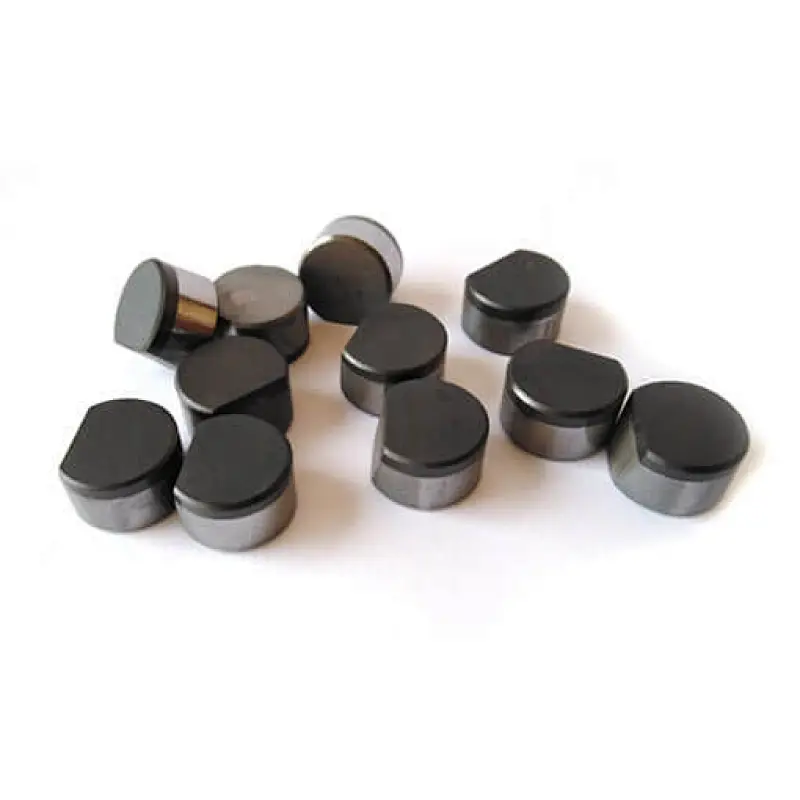

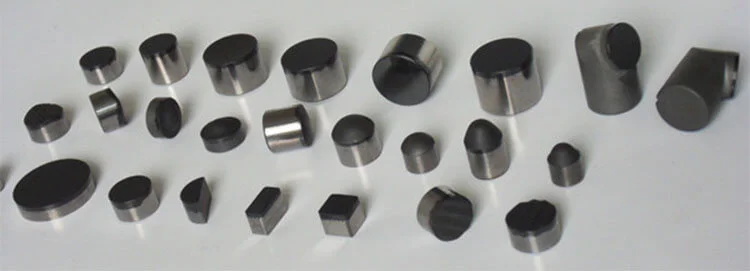

4.Special shaped:we could provide special shaped PDC according to client's requirement, including Rectangular shape, triangle shape,big diameter and other shape etc.
